Sleeps 9
-
2 Slides
-
BunkhouseOutdoor Kitchen
-
36ft Long
-
7,247 lbs

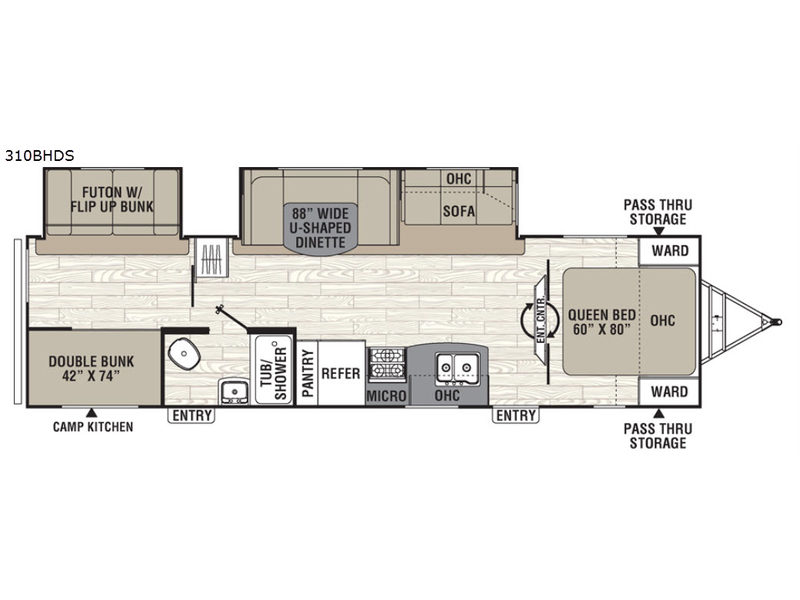

310BHDS Floorplan
Specifications
Sleeps | 9 | Slides | 2 |
Length | 35 ft 7 in | Ext Width | 8 ft |
Ext Height | 11 ft | Hitch Weight | 865 lbs |
GVWR | 9900 lbs | Dry Weight | 7247 lbs |
Cargo Capacity | 2653 lbs | Fresh Water Capacity | 49 gals |
Grey Water Capacity | 33 gals | Black Water Capacity | 33 gals |
Number Of Bunks | 2 | Available Beds | Queen |
Refrigerator Type | 2 Door | Refrigerator Size | 6 cu ft |
Cooktop Burners | 3 | Number of Awnings | 1 |
LP Tank Capacity | 20 | Awning Info | 18' Power |
Number of LP Tanks | 2 | Shower Type | Tub/Shower Combo |
VIN | 5ZT2FEWB8JW003853 |
Description
This 310BHDS Freedom Express travel trailer by Coachmen RV features two deep slide outs that make this unit feel even more spacious the minute you step inside. With a rear bunkhouse you can easily sleep 9 in this trailer!
Starting out in front there is a bedroom with a queen bed to the right of the front most entry door with wardrobes on either side of the bed, plus an overhead storage cabinet for your things.
The main living and combined dining area feature a large slide out with an 88" wide u-shaped dinette and sofa. There is an entertainment center just off the foot of the bed with a 360 degree TV box for multiple position viewing.
The kitchen is along the curbside and features all of the amenities needed to provide meals and snacks for your whole crew. There is a pantry for your dry and canned goods, a refrigerator and microwave oven, plus a three burner range for cooking. You will also find a double sink which makes cleaning up a cinch.
Step further back into this Freedom Express trailer and find a convenient full bath with a toilet, sink, and tub/shower, or enter the rear most side exterior door which provides immediate accessed from the outside. No more running through the entire trailer for the bathroom when outdoors.
The private rear bunkhouse is perfect for the kids and extra guests to feel like they have a little space to call their own. There is a 42" x 74" bunk on the left with wardrobe and ladder beneath, and a slide out futon opposite with flip-up bunk above.
There is also no shortage of storage space with a front pass-through compartment. If that isn't enough, then check out the camp kitchen beneath the double bunk along the rear curbside. Here you can create meals or snacks while enjoying the great outdoors at the same time, plus so much more!
Features
Standard Features (2018)
Interior and Decor
- Independence Maple Hardwood Cabinet Doors and Drawer Faces
- Furniture Grade, Pocket Drilled and Screwed Stile and Rail Cabinet Front Construction
- Full Extension Roller Bearing Drawer Guides
- Designer Hard Valance with Soft sided Window Treatments
- Range Hood w/ 12V Exhaust and Light
- Sealed/Seamless Counter-tops
- Brushed Nickel Hardware
- High-Rise Kitchen Faucet
- 60/40 Stonecast Composite Kitchen Sink
- Silverware Drawer with Removable Tray (Select Models)
- Jackknife Sofa
- Dinette Storage Access Doors
- Accent Wall in Master Bedroom
- Two Full-Length Mirrored Closets in Master, and Over-Bed Cabinets
- Two Nightstands with 110V Outlets (Most models)
- Storage Under Master Bed and Bunks (Select models)
- Wooden Privacy Slider Doors to Master Suite In Place of Curtain or Accordion Door (Most models)
- Entertainment Tower with Rotating TV for Bedroom Viewing (Select models)
- Exhaust Vent with Fan in Bathroom
- Vent in Master Bedroom
- Wood Medicine Cabinet with Bathroom Mirror and Cosmetics Shelf
- Hi Rise Foot Flush Toilet
- Interior Speakers with Selector Switch
- 55 Amp Power Converter
- GFI Receptacles in Bathroom and Kitchen
- LP Leak Alarm
- Fire Extinguisher
- Smoke and Carbon Dioxide Detector
- Multiple Egress Windows with Screen and Prop Rod
- Cable Support Tent Ends - 1000# Capacity (Expandables Only)
Exterior
- Dual 20# LP bottles
- LP Bottle Cover w/Valve Access
- 60° A-frame
- Dual Battery Rack
- Insulated, Painted Radius Entry Door with Screen Door
- Amber Patio Light
- Nitrogen Filled Radial Tires
- Water Heater Bypass
- Heavy Duty Welded Safety Chains
- Four-Wheel Electric Brakes
- Breakaway Safety Cable
- Exterior GFI Outlet Near Awning
- High-Capacity Roto-Cast Holding and Fresh Water Tanks
- HappiJac Double Hat Rail, Rack and Pinion 12V Slide System (18" slides)
- LCI Rack and Pinion 12V Slide System with Full Width Welded Ram (38" slides)
- Schwintek Slide System (Some models)
Construction
- Alumicage Welded Aluminum Structure, Vacuum Bonded Floor and Sidewalls
- Azdel Composite (IPO luan behind fiberglass)
- Smooth Fiberglass Exterior Skin
- Aluminum Framed Openings
- Powder E-Coated Steps and Axles
- Floor Plan Specific Cambered Frame Design
- Full Walk-on, Crowned, Aluminum Reinforced Roof with EPDM Membrane over 3/8” Roof Decking
- Double Wiper Seals on All Slide outs
Standard Extras
- Green Certification
- Seal Tech and Rain Bay Testing on Every Unit
- One-Year Free Membership to Coachnet Roadside Assistance
- One-year Free Membership to Coachmen Owner's Association (C.O.A.)
Freedom Value Package (REQUIRED)
- ¾ Gel Coated Fiberglass Front Cap with LED Lights
- Aluminum Wheels
- Spare Tire Kit
- Detachable Power Cord
- Power Awning
- Magnetic Catch Compartment Doors
- Tinted Safety Glass Windows
- Front Diamond Plate
- TV & Radio Antenna with Booster
- E-Z Lube® Axles
- Spread Axle Design (N/A on Models Under 25')
- Heated Enclosed Underbelly (N/A on Models Under 25')
- Solar Port
- Folding Entry Assist Handle
- Exterior Shower Station
- Winterize Ready Kit
- Black Tank Flush
- 2 Exterior Speakers, 4 Interior Speakers
- Ducted Furnace (N/A on Models Under 25')
- Ducted Ceiling Air Conditioning (25’ and above)
- AM/FM/CD/DVD/Bluetooth
- 24”, 32” or 39” LED TV
- Satellite Ready
- LED Interior Lighting Throughout
- Night Shades Throughout
- Congoleum Designer Carefree Flooring
- Mortise and Tenon Cabinet Doors
- Stonecast Sink
- Sink Covers
- Galley LED Strip Light
- Microwave
- Oven with 3 Burner Cooktop
- Butcher Block Stove Cover
- 6 Cu. Ft. Two Door Refrigerator
- Silverware Drawer (select models)
- 60” x 80” Queen Bed
- LED Swivel Crystal Reading/ Night Light – Bedroom
- Electronic Charging Station
- Skylight in Bath
- RVIA
- LED 4” Recessed Lights in Living Area
- White LED Awning Light
- 12” LED Step Light
- LED Light Strip in Pass-through Storage (N/A 276 RKDS, 297 RLDS)
- 24” x 48” Resin Outdoor Table
Options
- 15,000 BTU A/C
- 50 Amp Service w/Second A/C Prep
- Push-Button Stabilizer Jacks (25' and above)
- Power Tongue Jack
- Coleman Slide out High Output Grill (Select models)
- Hide-A-Bed (Deep slides only)
- RV Eye Wi-Fi Cameras
- Frameless Windows
- Ladder (N/A 271 BL and 301 BLDS)
- 8 Cu. Ft. Refrigerator
- Thermal Pack
- Free Standing Dinette with 4 Chairs
- Canadian Compliance
Special Edition Package (SE Models)
- Radial Tires with Silver Steel Wheels
- Spare Tire
- Black Fenders with Black Skirt Metal
- Detachable Power Cord
- Power Awning
- Solar Port
- Tinted Safety Glass Windows
- Front Diamond Plate
- TV and Radio Antenna with Booster
- E-Z Lube® Axles
- Heated/Enclosed Underbelly
- 33/33 Gal Grey, Black Holding Tank
- 49 Gal Fresh Water Tank
- Two Exterior Speakers
- AM/FM/Bluetooth Stereo
- Two Interior Speakers
- Ducted AC
- Ducted Furnace
- 6 Gal DSI Gas/Electric Water Heater
- LED Interior Lighting
- Mortise and Tenon Cabinet Door
- Congoleum Diamond Flooring
- Night Shades
- Microwave
- Oven with 3-Burner Cooktop
- 6 Cu. Ft. Two-door Refrigerator
- Silverware Drawer (select models)
- Double Basin Sink
- Bath Skylight
- 60” x 80” Queen Mattress with corative Bedspread
- RVIA
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
